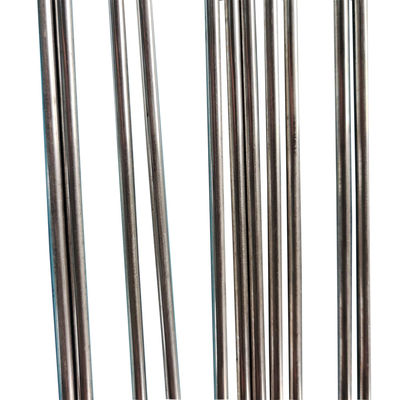

Inconel 625 Welding Wire ERNiCrMo-3 with 1.0mm Diameter for Corrosion Resistant and High Temperature Stability Applications
|
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Composition chimique: | ERNiCrMo3 | Application: | soudage Inconel 625 |
|---|---|---|---|
| Forme: | fil | Dimensions: | 1,0 mm |
| Couleur: | Blanc argenté | Standard: | ASTM,ASTM ASME YB HB BJB GO |
| Mettre en évidence: | 1.0mm Diameter Inconel 625 Welding Wire,Corrosion Resistant ERNiCrMo-3 Welding Wire,High Temperature Stability Nickel Alloy Welding Wire |
||
AWS 5.14 ERNiCrMo-3 refers to Inconel 625. It maintains stable mechanical property from crystallization to high temperature-980℃(1796℉). The most valuable property of Inconel 625|ERNiCrMo-3 is its strong resistance to pitting, crevice corrosion and stress corrosion generated by oxidation and reducing acid.
AWS 5.14 ERNiCrMo-3 Chemical Composition
| C | Mn | Fe | P | S | Si | Cu | Ni | Co | Al | Ti | Cr | Nb+Ta | Mo | V | W | Others |
| 0.1 | 0.5 | 5 | 0.02 | 0.015 | 0.50 | 0.5 | ≥58.0 | / | 0.4 | 0.4 | 20.0-23.0 | 3.15-4.15 | 8.0-10.0 | / | / | 0.50 |
ERNiCrMo-3 Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
|
AWS A 5.14 ASME SFA A5.14 |
8.4 |
1287-1348°C 2349-2458°F |
760Mpa 110Ksi |
420Mpa 60Ksi |
27% |
AWS 5.14 ERNiCrMo-3 Welding wire| Welding Rod Cover Gas
| Process | Diameter | Voltage | Amperage | Gas |
| TIG | 0.035’’(0.9mm) | 12.15 | 60-90 | 100% Argon |
| 0.045’’(1.2mm) | 13.16 | 80-110 | 100% Argon | |
| 1/16’’(1.6mm) | 14.118 | 90-130 | 100% Argon | |
| 3/32’’(2.4mm) | 15.20 | 120-175 | 100% Argon | |
| 1/8’’(3.2mm) | 15.20 | 150-220 | 100% Argon | |
| MIG | 0.035’’(0.9mm) | 26-29 | 150-190 | 75% Argon+25% Helium |
| 0.045’’(1.2mm) | 28-32 | 180-220 | 75% Argon+25% Helium | |
| 1/16’’(1.6mm) | 29-33 | 200-250 | 75% Argon+25% Helium | |
| SAW | 0.035’’(0.9mm) | 28-30 | 275-350 | Suitable Flux may be used |
| 0.045’’(1.2mm) | 29-32 | 350-450 | Suitable Flux may be used | |
| 5/32’’(4.0mm) | 30-33 | 400-550 | Suitable Flux may be used |
What is AWS 5.14 ERNiCrMo-3 used for?
ERNiCrMo-3 welding wires and rods are used for joining base materials such as UNS N06625, UNS N08825, and other common steel.
Valve surface weld overlay
Pipeline weld overlay
Waste Incineration Furnace
Instructions for AWS 5.14 ERNiCrMo-3 use:
Generally, it is necessary to use a small welding current to keep the arc stable combustion, and the quality of arc initiation and arc recovery is higher.
Attention should be paid to the quality of the joint, and the preheating and heat treatment temperature similar to that of the base material should be used.
Inconel is a trademark of high-performance nickel-based alloys developed by Special Metals Corporation.
Incoloy is a trademark of high-performance nickel-based alloys developed by Special Metals Corporation.
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
